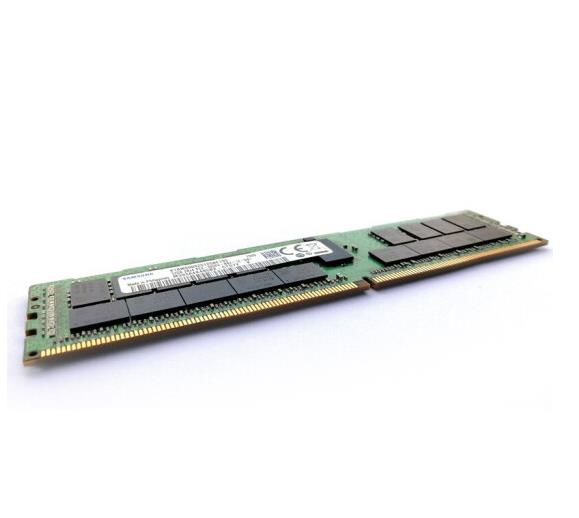

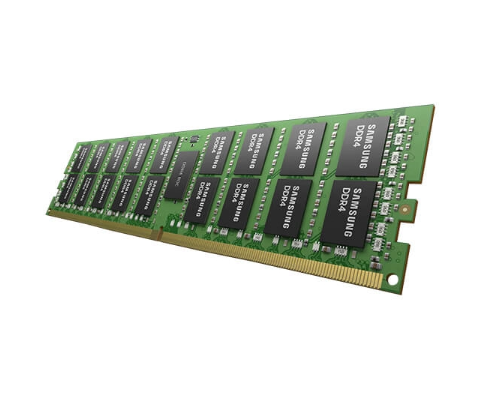

M393A8G40MB2-CVF

M393A8G40MB2-CVF

M393A8G40MB2-CVF

RDIMM

Registered DIMM

- Include a register for enhancing clock,

command and control signals

- Error correction available by added 8 bit parity signals

- Supports x4 / x8 Organization / up to 2 ranks per DIMM and 3DPC

configuration

- Application : Server

Product Specifications

Part Number	DDR	Dimm Type	Density	Rank x Org.	Speed	Voltage	No. of Pin	Component Composition
M393A2K43CB2-CTD	DDR4	RDIMM	16 GB	2R x 8	2666 Mbps	1.2 V	288	(1G x 8) x 18
M393A2K40DB2-CVF	DDR4	RDIMM	16 GB	1R x 4	2933 Mbps	1.2 V	288	(2G x 4) x 18
M393A2K43DB2-CVF	DDR4	RDIMM	16 GB	2R x 8	2933 Mbps	1.2 V	288	(1G x 8) x 18
M393A4K40CB2-CVF	DDR4	RDIMM	32 GB	2R x 4	2933 Mbps	1.2 V	288	(2G x 4) x 36
M393A4K40DB3-CWE	DDR4	RDIMM	32GB	2R x 4	3200 Mbps	1.2 V	288	(2G x 4) x 36
M393A8G40MB2-CVF	RDIMM	RDIMM	64GB	2R x 4	2933 Mbps	1.2 V	288	(4G x 4) x 36
